Lab 5 - Integration

Caudal offers integration with a wide set of tools.

Requirements

Elasticsearch

Caudal, as an in-memory streaming processor, does not have an internal mechanism to store events atomically. Elasticsearch could be util in scenarios where we need to search and extract historical reports.

Next, we propose an exercise to push extracted events from Twitter to Elasticsearch, and extract reports through Kibana:

Caudal Elasticsearch Diagram

Configuration

Write following configuration in config/ directory, and enjoy comments:

config/twitter-elastic.clj

;; Requires
(ns caudal.example.tcp
  (:require
   [mx.interware.caudal.io.elastic :refer :all]
   [mx.interware.caudal.io.rest-server :refer :all]
   [mx.interware.caudal.streams.common :refer :all]
   [mx.interware.caudal.streams.stateful :refer :all]
   [mx.interware.caudal.streams.stateless :refer :all]))

;; Listeners
(deflistener twitter [{:type       'mx.interware.caudal.io.twitter
                       :parameters {:name            "MyCaudalExample"
                                    :consumer-key    "CoNsuMerKey"
                                    :consumer-secret "CoNsUmErSeCrEt"
                                    :token           "00000000-AcCeSsToKeN"
                                    :token-secret    "AcCeSsToKeNsEcReT"
                                    :terms           ["selfie" "beach" "travel"]}}])

;; Prune a lot of data of incoming twitter event
;; Search for tweets with geolocation enabled and not replies or quotes
(defn prune-data [event]
  (let [{:keys [coordinates user text in_reply_to_screen_name is_quote_status in_reply_to_status_id_str]} event
        [lon lat] (:coordinates coordinates)]
    (if-not (and in_reply_to_screen_name is_quote_status in_reply_to_status_id_str)
      (if coordinates
        {:user (:screen_name user)
         :text text
         :coordinates (str lat "," lon)}
        (clojure.tools.logging/warn {:prune "no coordinates"}))
      (clojure.tools.logging/warn {:prune "reply"}))))

;; Sinks
(let [es-url          "http://localhost:9200"   ;; elasticsearch url
      es-mapping-name "caudal-mapping"          ;; mapping name
      es-index-name   "caudal-index"            ;; index name
      es-mapping      {es-mapping-name {:properties {:user        {:type "string" :index "not_analyzed"} ;; Does not analize :user
                                                     :timestamp   {:type "date" :format "epoch_millis"}  ;; Takes :timestamp in millis
                                                     :coordinates {:type "geo_point"}                    ;; Takes :coordinates as lat,lon
                                                     }}}
      es-store-fn        (elastic-store! [es-url es-index-name es-mapping-name es-mapping {}])]
  (defsink example 1 ;; backpressure
    (smap [prune-data]
          (time-stampit[:timestamp]
                       (->INFO [:all]
                               es-store-fn)))))

;; Wire
(wire [twitter] [example])

Download and start Elasticsearch before to start Caudal:

$ wget https://artifacts.elastic.co/downloads/elasticsearch/elasticsearch-5.2.2.tar.gz
$ tar xzvf elasticsearch-5.2.2.tar.gz
$ cd elasticsearch-5.2.2
$ bin/elasticsearch

Check connectivity to port 9200 of Elasticsearch using curl:

$ curl http://localhost:9200
{
  "name" : "bdbqlra",
  "cluster_name" : "elasticsearch",
  "cluster_uuid" : "hjpH9C0USPOiSno8b2yNqA",
  "version" : {
    "number" : "5.2.2",
    "build_hash" : "f9d9b74",
    "build_date" : "2017-02-24T17:26:45.835Z",
    "build_snapshot" : false,
    "lucene_version" : "6.4.1"
  },
  "tagline" : "You Know, for Search"
}

Start Caudal passing configuration file:

$ bin/caudal -c config/twitter-elastic.clj start

Verifying Elasticsearch contents:

$ curl -XPOST 'localhost:9200/caudal-index/_search?pretty' -d '{"query": { "match_all": {} }}'

Kibana

In order to create visualizations and reports, we need to install and run Kibana:

$ wget https://artifacts.elastic.co/downloads/kibana/kibana-5.2.2-linux-x86_64.tar.gz
$ tar xzvf kibana-5.2.2-linux-x86_64
$ cd kibana-5.2.2-darwin-x86_64/
$ bin/kibana

Open url http://localhost:5601 in a browser and click on Settings.

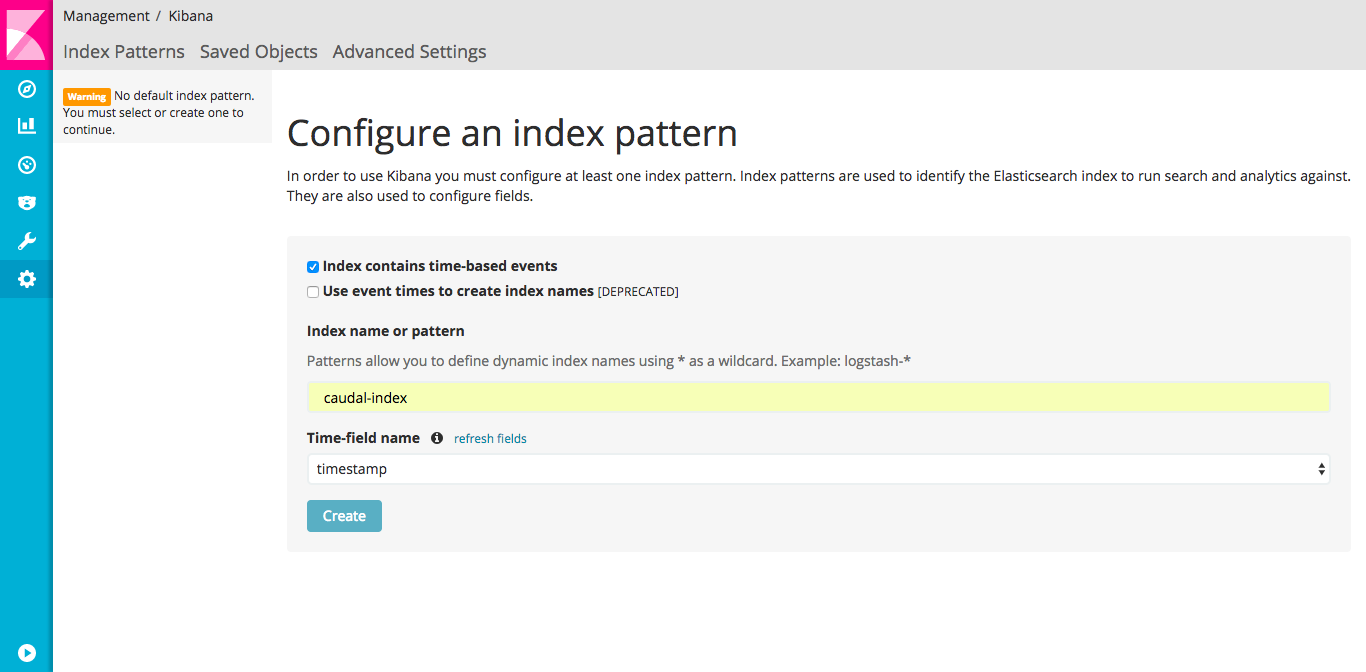

In Configure an index pattern screen put as index caudal-index and select timestamp as Time-field name, then click in Create:

Kibana: Adding the labs index

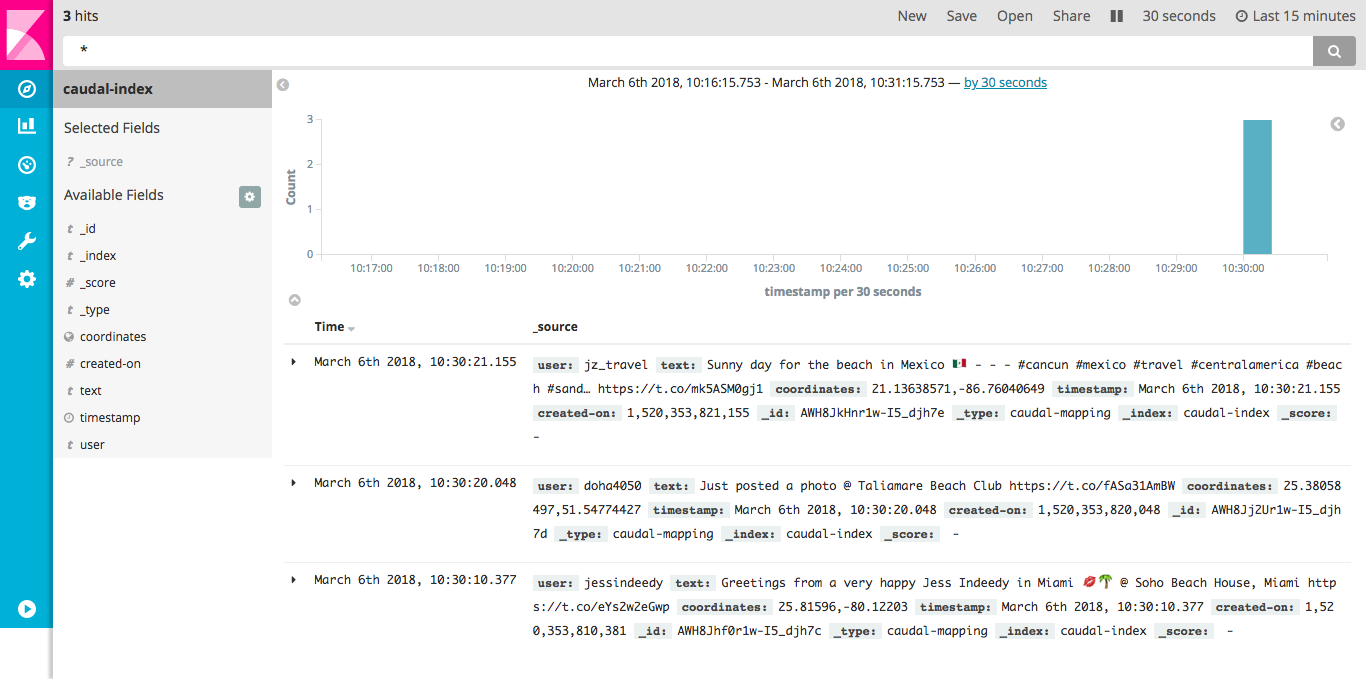

Now, click Discovery button (on top of sidebar), you should be a Timeline with incoming events:

Kibana: Discovery

Visualizations

Tile map

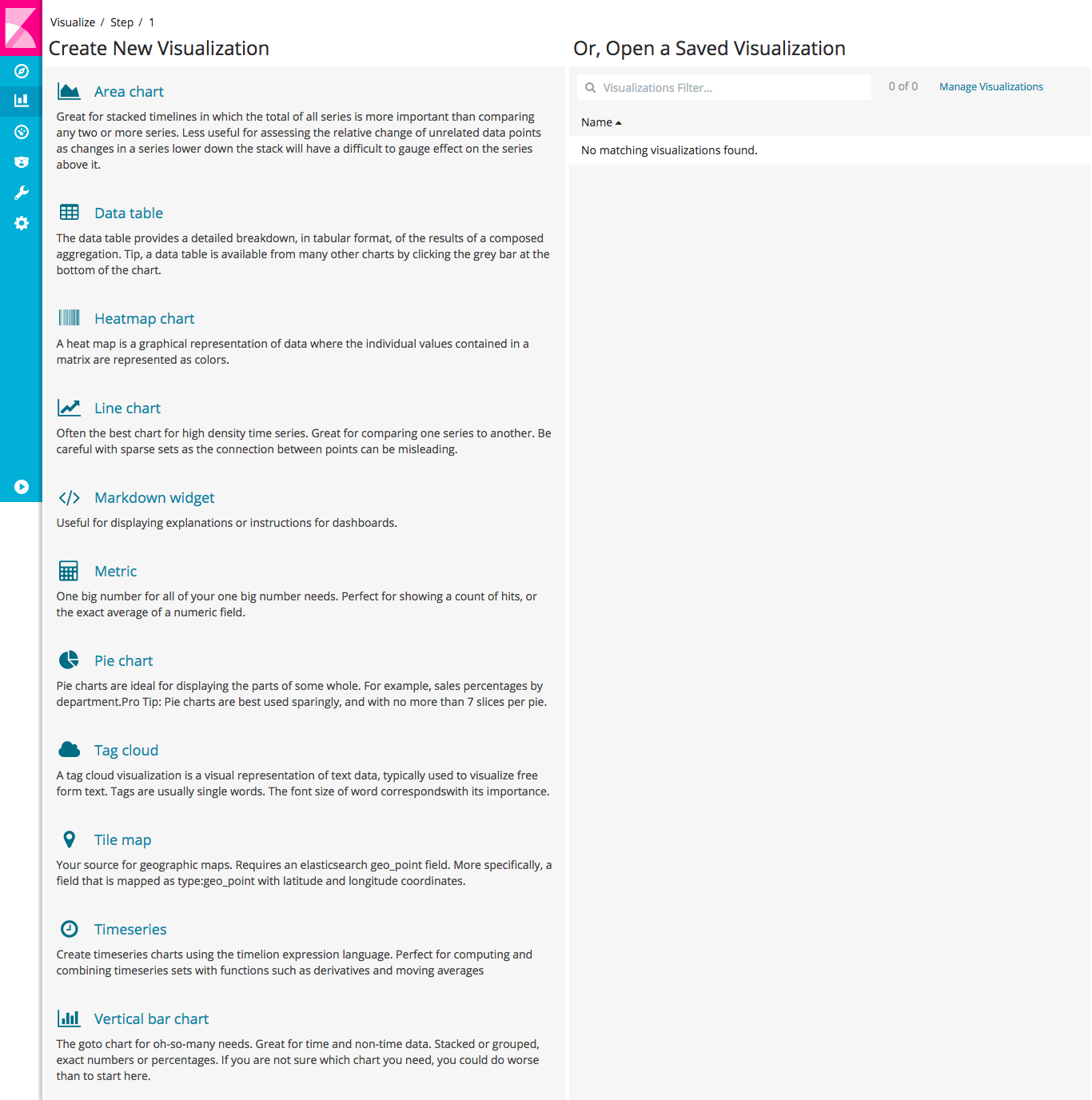

Creating a visualization for events is quite easy, in sidebar click Visualization. In this screen, search in column Create new Visualization for Tile map and click:

Kibana: Visualize

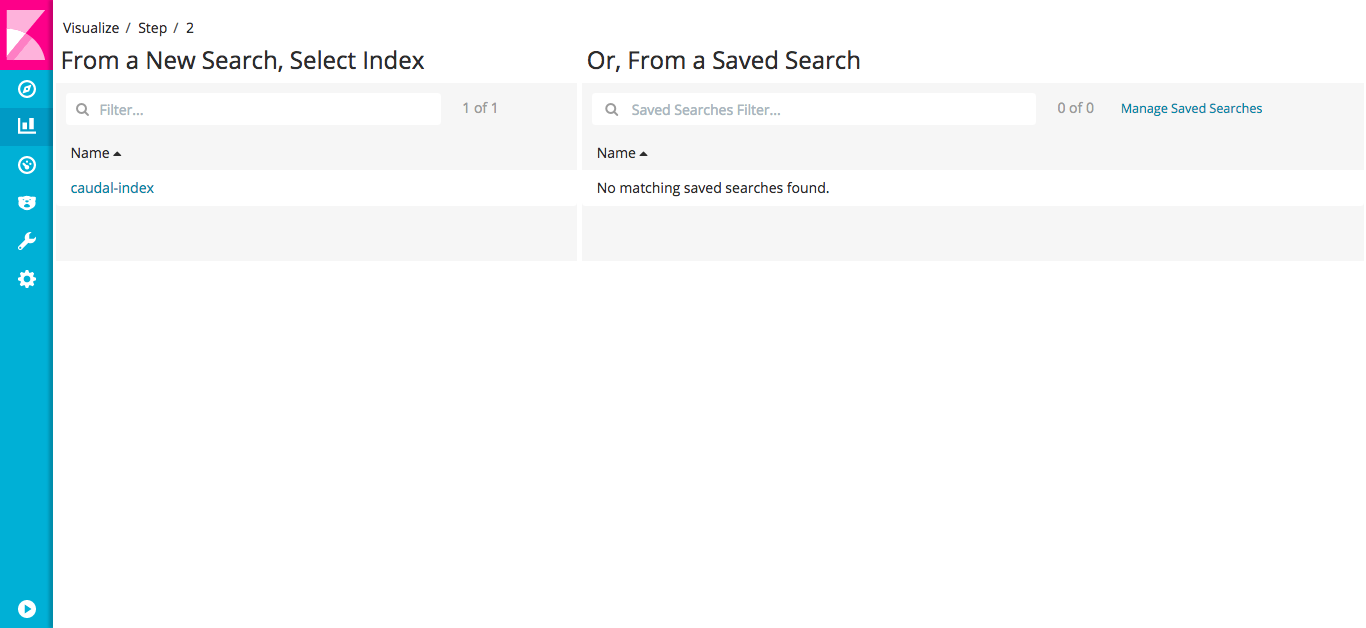

In Step 2 select caudal-index in column From a New Search, Select Index:

Kibana: Visualize

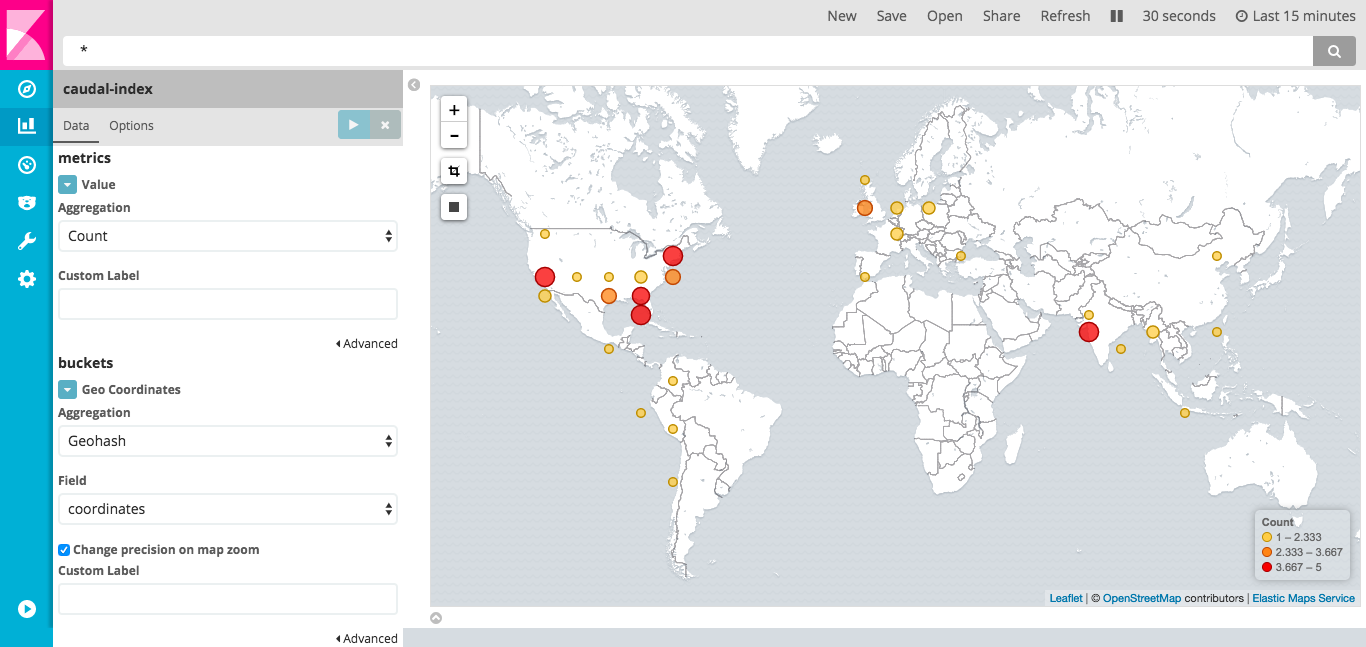

In Tile map screen, in Data Options, click Geo coordinates. Select Geohash aggregation and coordinates as field. Now click in Play button and map is updated with cluster points by geolocated tweet:

Kibana: map

Save your visualization using Save button.

Pie chart

Click Visualize button until you can see Create new Visualization, then search for Pie chart. Again in Step 2 select caudal-index in column From a New Search, Select Index.

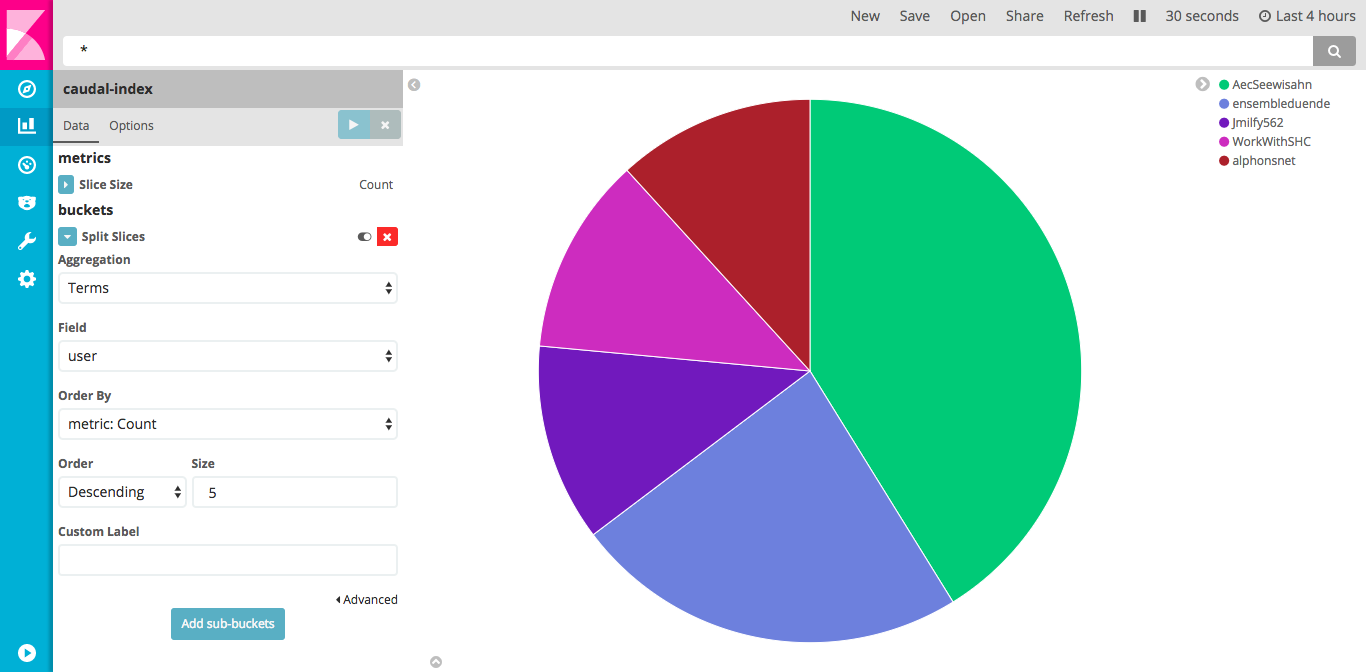

In Pie chart screen, Click Split Slices using Terms as aggregation and user as field. This pie shows top five tweeters:

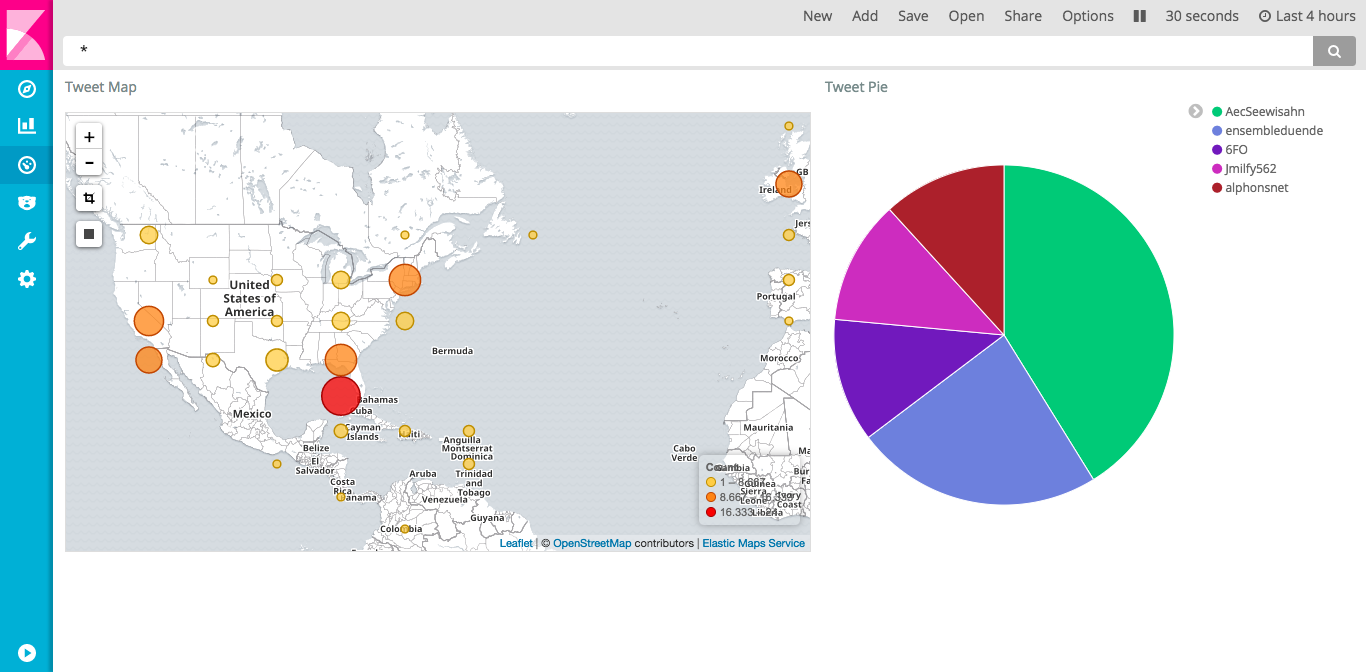

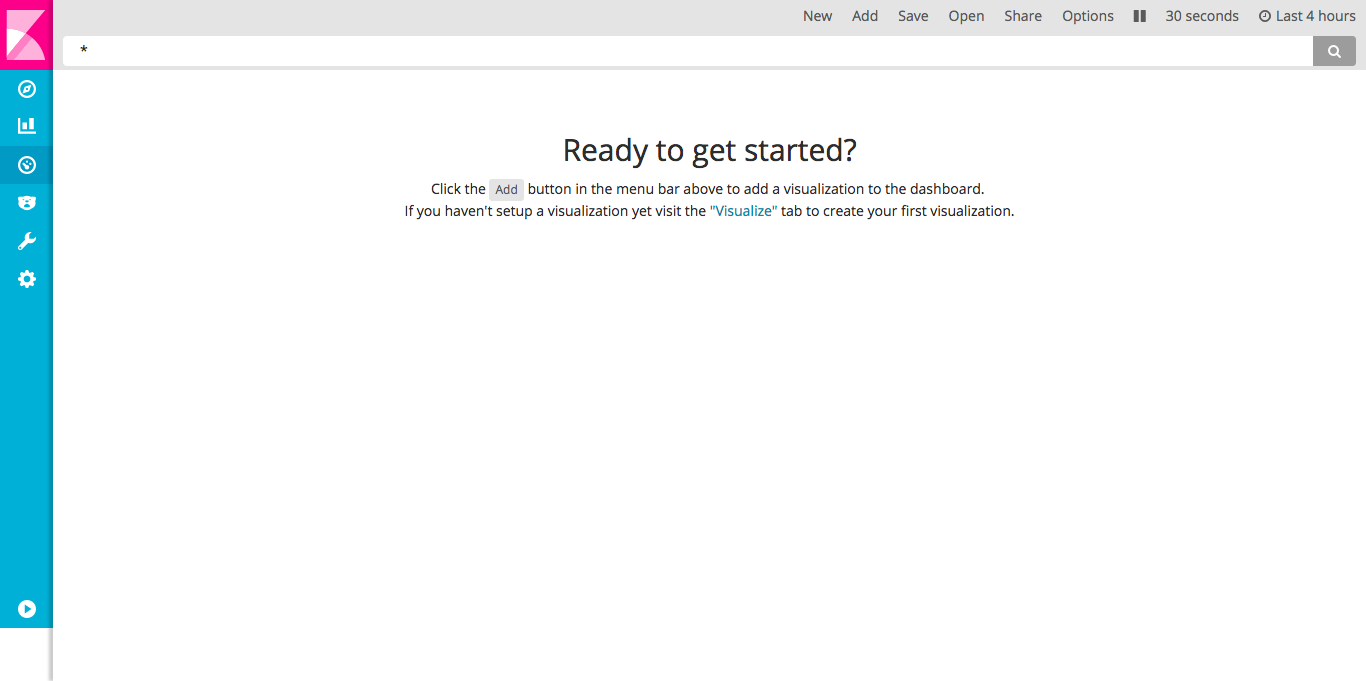

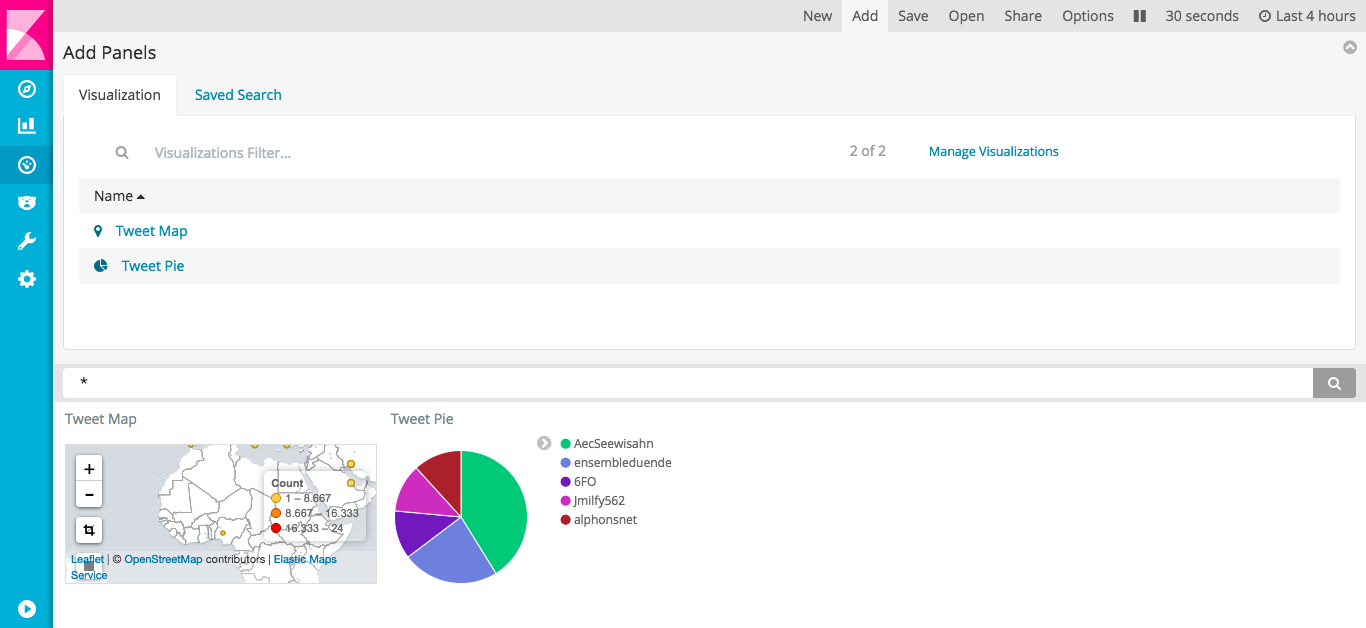

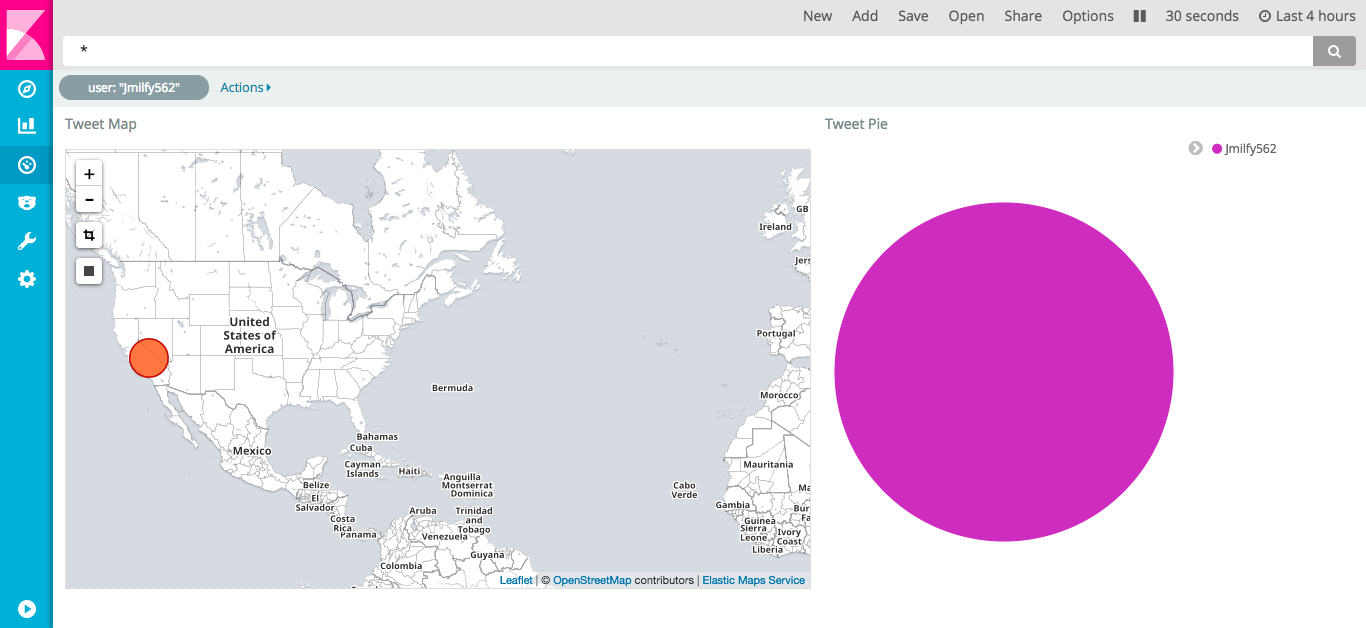

Kibana: pie
